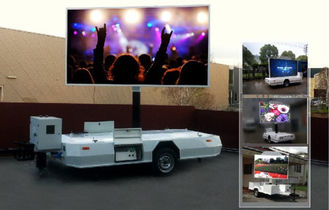

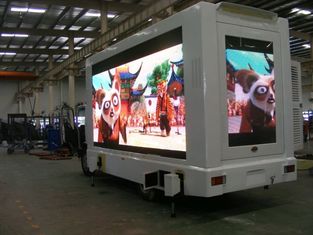

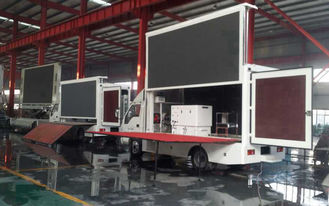

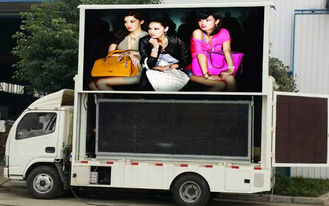

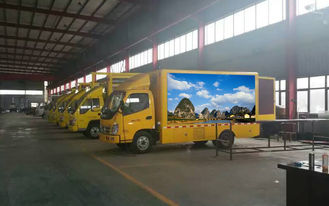

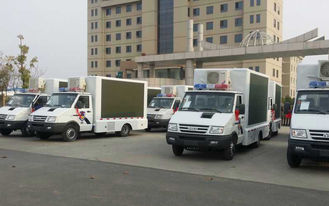

Mobile led truck led display screen
Datos del producto:
| Place of Origin: | CHINA |
| Nombre de la marca: | MUENLED |
| Certificación: | CE,FCC,ROSH,CCC |
| Model Number: | P8,P10 |
Pago y Envío Términos:
| Minimum Order Quantity: | 1SQM |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7-15DAYS |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 999SQM |
|
Información detallada |
|||
| NAME: | Mobile led truck led display screen | EMAIL: | MIKE@MLXLED.COM |
|---|---|---|---|
| PHONE: | +86 13510945503 | ||
Descripción de producto
 |
|
|
|
|
|
|
Items |
P6mm | P8mm | P8mm | P10mm | P16mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD3535 | SMD3535 | DIP | DIP | DIP |
| Pixel Pitch | 6mm | 8mm | 8mm | 10mm | 16mm |
| Pixel Density | 27,777 | 15,625 | 15,625 | 10,000 | 3,906 |
| Module Size(mm) | 192x96or 192x192 | 256x128 | 256x128 | 160x160 | 256x128 |
| Pixels/Module | 32x16 or 32x32 | 32x16 | 32x16 | 16x16 | 16x8 |
| Cabinet Size(mm)(WxHxT) | 960x960x190 | 1024x1024x190 | 1024x1024x190 | 960x960x190 | 1024x1024x190 |
| Pixels/Cabinet | 160x160 | 128x128 | 128x128 | 96x96 | 64x64 |
| Cabinet Weight | 42KG | 48KG | 58KG | 51KG | 58KG |
| Brightness | >6000cd/㎡ | >5000cd/㎡ | >7000cd/㎡ | >7000cd/㎡ | >7000cd/㎡ |
| Viewing Distance | >6m | >8m | >8m | >10m | >16m |
| Power | Max: 1300 | Max: 1000 | Max: 1000 | Max: 1000 | Max: 1000 |
| Consumption(W/㎡) | Ave: 260 | Ave: 260 | Ave: 300 | Ave: 300 | Ave: 200 |
| Driver Mode | 1/4 scan | 1/4 scan | 1/4 scan | 1/4 scan | Static Latching |
| Viewing Angle | H: 120°; V: 120° | H: 110°; V: 60° | |||
| Cabinet Material | Cold Rolled Steel | ||||
| Refresh Rate | 300-3000HZ adjustable | ||||
| LED Life | 100,000 hours | ||||
| Supply Voltage | AC220V/50HZ; AC110V/60HZ | ||||
| Operating Temperature | -20℃ ~ +50℃ | ||||
| Operating Humidity | 10% - 90% | ||||
| Gray Scale | Red, Green and Blue each 16K | ||||
| Display Color | 4096 Billion | ||||
| IP Rating | Front IP65 | ||||
| Display Capability | Text, Graph and Video | ||||
| Compliant Standard |
CCC,CE,RoHS,FCC |
||||
