Novastar Pluto PSD100 LED Sending Card,PSD100 Novastar LED Card
Datos del producto:
| Place of Origin: | china |
| Nombre de la marca: | muenled |
| Certificación: | CCC,FCC,ISO,9001,ROHS,CE |
Pago y Envío Términos:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Precio: | US$ 300 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 100PCS |
|
Información detallada |
Descripción de producto
- Model: LCC-Novastar-PSD100
- Shipping Weight: 0.5kg
- 357 Units in Stock
- Manufactured by: NovaStar

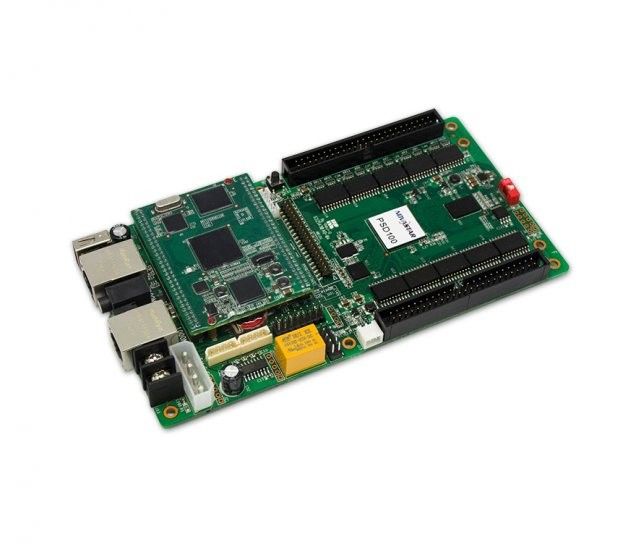

Novastar Pluto PSD100 LED Sending Card,PSD100 Novastar LED Card
● Product type: asynchronous card
● Supply voltage: 5V
● Control method: Ethernet cable.
● Cascading receiving card: Support
● Storage extension method: USB flash disk/ SD card
● Internal memory: 512M
● Audio output: Support.
● Capacity of a single card: 384X256
● Capacity of cascading receiving cards: 512x1024, 960x600, 1024x570, 1526x384, 2048x256
● Network access methods: 3G,Wi-Fi,ADSL
PSD100 is Nova Asynchronous Card, It has the following characteristics:
(1) Remote publish play-program；
(2) Remote Monitoring the current play information；
(3) Remote control power supply；
(4) Play as per time segment or according to date, week and time;
(5) Self-adapting window display；
(6) Multiple clients synchronous display；
(7) Support a variety of media formats, such as video, images, text, weather, clock,countdown, Word, Excel, Txt etc;
(8) Support emergency inser play,immediate notification；
(9) Remote manage the playback log；
(10) U disc export and Insert-and-Play;
(11) Support remote upgrade of application software and hardware programs;
(12) Flexible loading capacity:512x1024, 800x600, 1024x512, 1536x384, 2048x256 ;
(13) Full-scale chip support:TI, Toshiba, MBlock, Siti, Sumacro, Mingyang and other series of products. Support DMI3H,MBI5024/5036/5034,
(14) MBI5042/5041/5030,MBI5040,MBI5050, etc;
(15) Support full-color static to 32 scan, real pixel/virtual pixel;
(16) Field frequency as 60Hz;
(17) The gray level is settable, and support 16 bit 65536 level gray to the maximum;
(18) Refresh frequency:scanning screen can achieve 3840Hz and static screen can achieve 6000Hz;
(19) Support brightness correction and chromaticity correction;
(20) Support the open-short test of MBI5036, MBI5034, MBI5039, DM13H;
(21) Support all monitoring states of MON300 (monitoring working state,temperature, humidity, smoke, switching power supply voltage, fan speed and single lamp open short of each cabinet);
(22) On-board temperature and voltage test;
(23) Support (with the optical probe NS048C) automatic brightness adjustment；
(24) Support secondary development；
(25) Support multi-function card MFN300.
