MUENLED-D-PH10 Head Door Advertising LED Display
Datos del producto:
| Place of Origin: | china |
| Nombre de la marca: | muenled |
| Certificación: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
Pago y Envío Términos:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Precio: | US$ 284 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Información detallada |
|||
| Screen Dimension: | 320*160 | Usage: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Green | Display Function: | Graphics |
| Pixels: | 10mm | ||
Descripción de producto

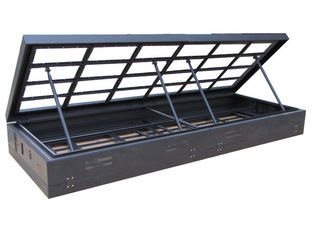

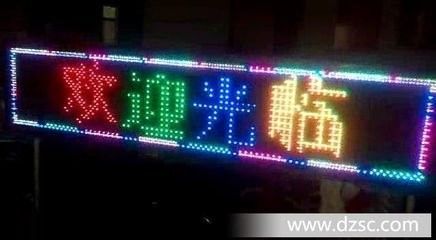

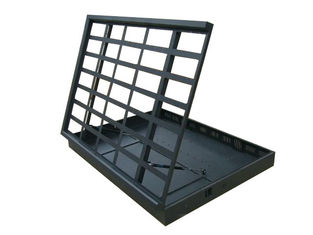

Head door Advertising display mainly use in store, enterprise units, Display vividly colorful picture, play video to catch more customer eyes. And this led display key feature is saving energy, high brightness, single and double side front service structure, led display with electric leakage protection, current surge, over-current protection, led display without noise of continuous working 24 hours a day.
|
Parameters |
PH10 Outdoor DIP series |
|
Pixel Pitch |
10mm |
| Pixel Density |
10000Dots/m² |
| Color |
Red,Green |
| LED Standard |
DIP546 |

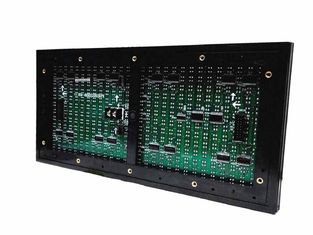

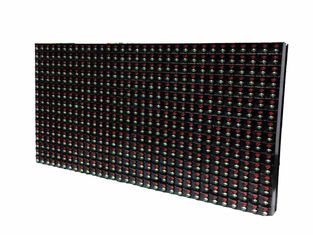

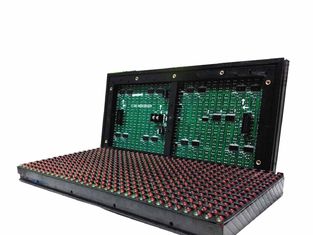

| Mosule Size |
320*160mm |
| Module Weight |
0.55kg |
|
Brightness |
≥3000cd/m² |
|
Displays colors |
10.7Million color |
|
Protection Level |
IP65 |
|
Control Mode |
Synchronous/Asynchronous |
| Driving Method |
Constant Current 1/4scan |
|
Refresh Rate |
1000Hz |
|
Viewing Angle (H/V) |
H:110° V:55° |
|
The optimal viewing distance |
10-180mm |
|
Consumption |
Max.consumption 400w/m² Average.consumption 100w/m² |
|
LED Lamp Parameters |
(R) γ d:(625-628nm) IV:(1000mcd) (G) γ d:(523-525nm) IV:(2200mcd) (B) γ d:(470-472nm) IV:(500mcd) |
|
Comunication Type |
3G WIFI Cats ≤ 100m Multimode optical fiber ≤ 500m Single Mode optical fiber ≤ 1500m |
|
The above content is for reference
|
|
