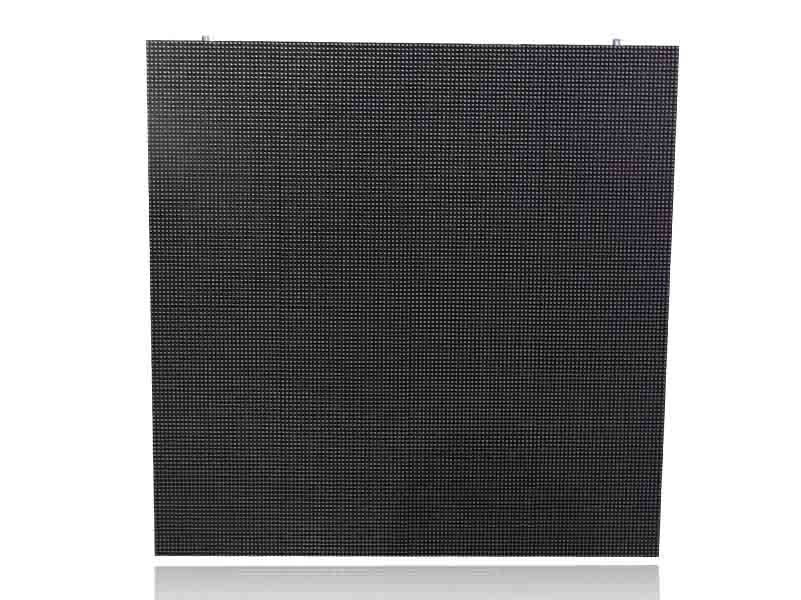

Indoor P5mm 64x32dots 320mmx160mm led display module
Datos del producto:
| Place of Origin: | china |
| Nombre de la marca: | muenled |
| Certificación: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH5 |
Pago y Envío Términos:
| Minimum Order Quantity: | 3PCS |
|---|---|
| Precio: | US$ 10 |
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Información detallada |
|||
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 5mm |
Descripción de producto
- Model: LCC-Ph5-I/F/T-B
- Shipping Weight: 0.8kg
- 861 Units in Stock
- Manufactured by: Indoor LED Module
Indoor P5mm 64x32dots 320mmx160mm led display module
Size:320mmx160mm, Resolution:64x32dots, including DATA and Power Cable, Epistar LED,2 Years Warranty.
|
Resolution |
64(H)×32(V) |
|
Pitch |
5mm |
|
Density |
40000 pixels/㎡ |
|
LED Arrangement |
1R1G1B |
|
Driver Mode |
Dynamic 1/16 Duty constant current |
|
Size |
320 mm×160 mm |
|
Mask |
Pure Black mask-high contrast screen |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥1500cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
3m-50m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
1200 W/m2 |
|
Average Power Consumption |
650 W/m2 |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60Hz |
|
Screen Refresh Frequency |
480Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP54 |
|
Out of Control Pixel Rate |
0.01% |
