P10mm SMD3535 Outdoor LED Display Module High Brightness
Datos del producto:
| Place of Origin: | CHINA |
| Nombre de la marca: | MUENLED |
| Certificación: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH10 |
Pago y Envío Términos:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Información detallada |
|||
| Usage: | Outdoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | 10mm |
Descripción de producto
- Model: LCC-P10-O/F/S-H
- Shipping Weight: 0.8kg
- 847 Units in Stock
- Manufactured by: Outdoor LED Module

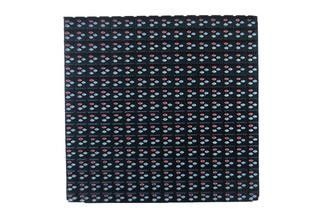

SMD3535 Outdoor waterproof Ph10mm led display module high definition
1/2 IC Driving ,Brightness: 7000 Nits(cd/m2),Size:160mmx160mm, Resolution: 16x16 dots. including DATA and Power cable, Epistar LEDs.
|
Resolution |
16(H)×16(V) |
|
Pitch |
10mm |
|
Density |
10000pixels/㎡ |
|
LED Arrangement |
SMD 3535 |
|
Driver Mode |
Dynamic 1/2 Duty constant current |
|
Size |
160mm×160mm |
|
Mask |
Pure Black mask-high contrast screen |
|
Brightness |
≥7000cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
8m-100m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP65 |
|
Out of Control Pixel Rate |
0.01% |
UNIT LED Terms:
Delivery time: within 3 working days after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: strong cardboard carton.
Warranty: 2 Years Warranty.
Shipping method: Ship the indoor led module by DHL, UPS, Fedex and EMS.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.
MUENLED Suggestion:
You can buy the led display module,led control card, led display parts and other led display accessories from MUENLED, and then assemble them into a complete indoor led display at your workshop. In this way, you can not only save the expensive import tax for the led display screen, but also provide your customers with the local-made smd led display,which are easily accepted by local customer who do not believe the made-in-china led video wall.
MUENLED Factory Stock
MUENLED usually keep 2000 pcs of indoor smd led module for each model in stock for sale. we can ship the led display module to your customers by express within 5 days after received the payment.then your customer will enjoy the fast delivery!
