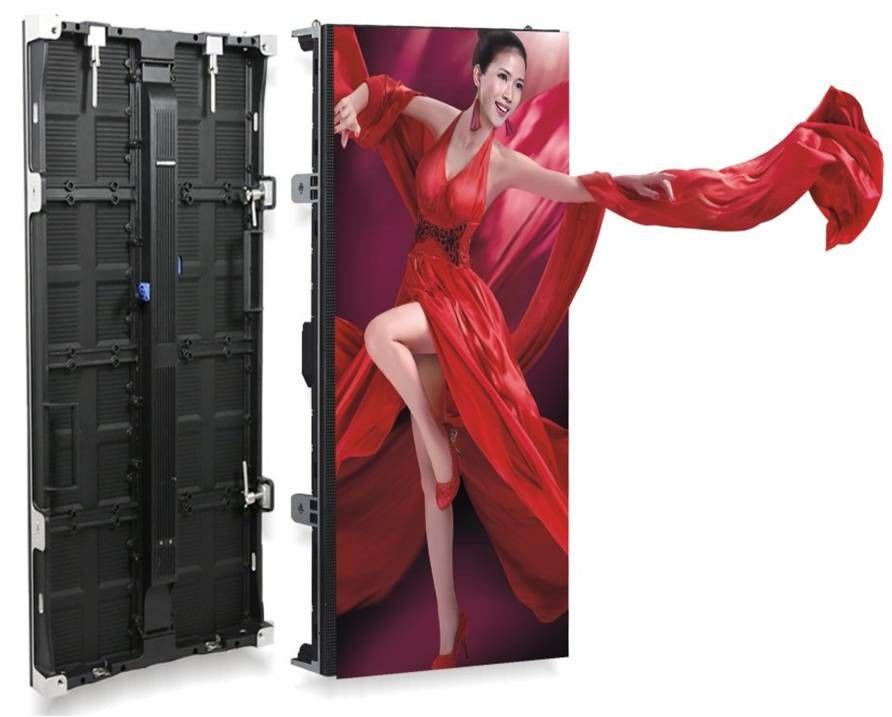

MUENLED Indoor Ph6.25mm aluminum led rental display panel less weight
Datos del producto:
| Place of Origin: | CHINA |
| Nombre de la marca: | MUENLED |
| Certificación: | CCC,FCC,ISO,9001,ROHS,CE |
| Model Number: | PH6.25 |
Pago y Envío Términos:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Packaging Details: | flijht case |
| Delivery Time: | 7 days |
| Payment Terms: | EXW,FOB,CIF |
| Supply Ability: | 10000PCS |
|
Información detallada |
|||
| Usage: | Indoor | Tube Chip Color: | Full Color |
|---|---|---|---|
| Display Function: | Video | Pixels: | PH6.25 |
Descripción de producto
- Model: LCC-P6-I/S/R-500x1000
- Shipping Weight: 12kg
- 120 Units in Stock
Indoor Ph6.25mm aluminum led rental display panel less weight
Delivery time: 10-15 days.
SMD3528, LED Panel size: 500mmx1000mm, Weigt: 10.5KG/cabinet. Epistar LED. 2 Years warranty!
The price including the LINSN receiving card. DATA and Power Cable. Power Supply!
Attention: The price is NOT including the Shipping Cost. Before you order,please contact us to confirm the shipping cost!
|
LED |
|||||
|
Color |
Package |
Intensity |
View Angle |
Wavelength |
Test Cond. |
|
Red |
SMD 3 in 1 |
260-320mcd |
140/140 |
625nm |
25℃,20mA |
|
Green |
SMD 3 in 1 |
380-450mcd |
140/140 |
520nm |
25℃,20mA |
|
Blue |
SMD 3 in 1 |
90-100mcd |
140/140 |
467nm |
25℃,20mA |
|
LED Module |
|
|
Resolution |
40(H)×40(V) |
|
Pitch |
6.25mm |
|
Density |
25600pixels/㎡ |
|
LED Arrangement |
SMD3528 |
|
Driver Mode |
Dynamic 1/10 Duty constant current |
|
Size |
250mm×250mm |
|
Mask |
Pure Black mask-high contrast screen |
|
LED Panel |
|
|
Resolution |
80(H)×160(V) |
|
Size |
500mm×1000mmx80mm |
|
LED Modules |
2x4Pcs |
|
Weight |
About 10.5 kg |
|
Electricity Parameter |
|
|
Optical Ratings |
|
|
Brightness |
≥1500cd/㎡ |
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
View Distance |
5m-60m |
|
Gray Scale |
8bits input, correction with 14bits |
|
Display Color |
16.7M |
|
Brightness Adjustment |
100 levels |
|
Power Supply |
|
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
Maxim Power Consumption |
950 W/m2 |
|
Average Power Consumption |
600 W/m2 |
|
Control System |
|
|
Correction Scale Level |
16bits |
|
Frame Update Frequency |
60Hz |
|
Screen Refresh Frequency |
480Hz |
|
Gamma Correction |
-5.0—5.0 |
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
Color Temperature |
5000-9300 adjustable |
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
Reliability |
|
|
Operating Temp. |
-20-60 Celsius degree |
|
Operating Humidity |
10-95% RH |
|
Operating Life |
100,000 hours |
|
MTBF |
5000 hours |
|
Continuous Working Time |
≥48 hours |
|
Protection Level |
IP54 |
